IMPULSE VOLTAGE TEST SYSTEM
Summary
Impulse voltage test system is designed for impulse lightning test of power
equipment, example for power transformer, GIS, power cable and some high capacitance test objects etc.
The whole system designing conforms to IEC standard, and has excellent quality with good heat radiation, high
reliable and easy to operate.
Features
Up to 2400kV output voltage
High efficiency designing
Auto grounding and easy to transfer
Human-friendly interface and intelligent control
Auto record for test data and data analysis
Scope
Impulse generator
Charging transformer
Damping impulse divider
Steeping wave equipment
Chopping wave equipment

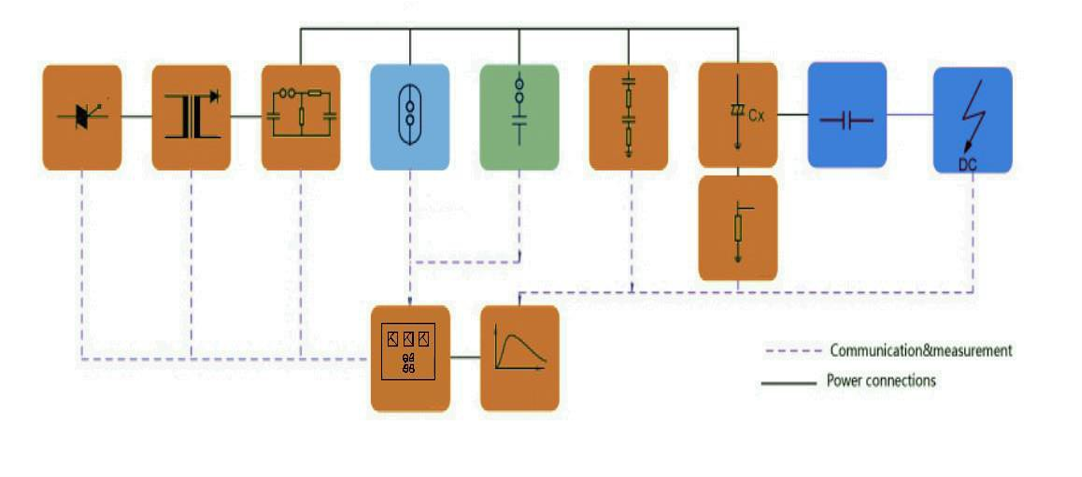

Drawing

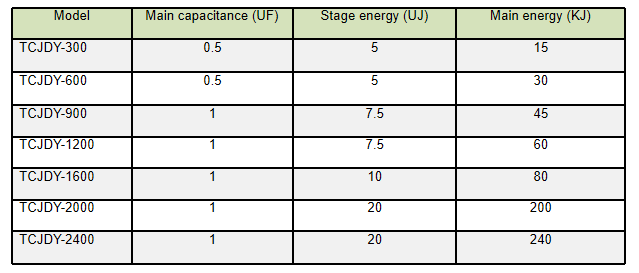

Model
