AC RESONANCE TEST SYSTEM
(Variable inductance type)
Summary
AC RESONANCE TEST SYSTEM is designed for PD& Withstanding
voltage test of power equipment, especially for GIS, power cable and some high capacitance test objects etc. The whole system designing conforms to IEC standard, and has excellent quality with good heat radiation, high reliable and easy to operate.
Features
Up to 800kV max output voltage
Non-pd designing, less than 2PC
High Q value
Human-friendly interface and intelligent control
Auto record for test data and data analysis
Scope
Resonant reactor
Voltage regulator
Power filter
Excitation transformer
Auto control system

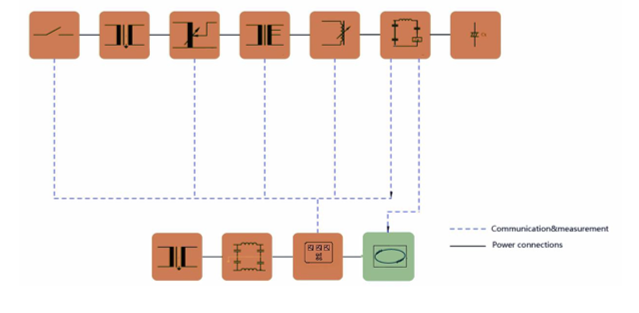

Drawing

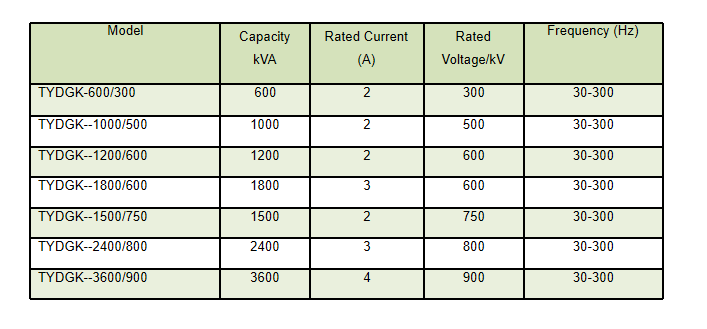

Model
