AC RESONANCE TEST SYSTEM
(Variable frequency type)
Summary
VARIABLE FREQUENCY OF AC RESONANCE TEST SYSTEM is
designed for the field of PD & withstanding voltage test of power equipment, especially for GIS, power cable and some high capacitance test object etc. The whole system designing conforms to IEC standard, and has excellent quality with good heat radiation, high reliable and easy to operate.
Features
Up to 1000kV max output voltage
low pd designing
High Q value
Human-friendly interface and intelligent control
Auto record for test data and data analysis
Scope
Resonant reactor
variable frequency converter
Power filter
Excitation transformer
Auto control system

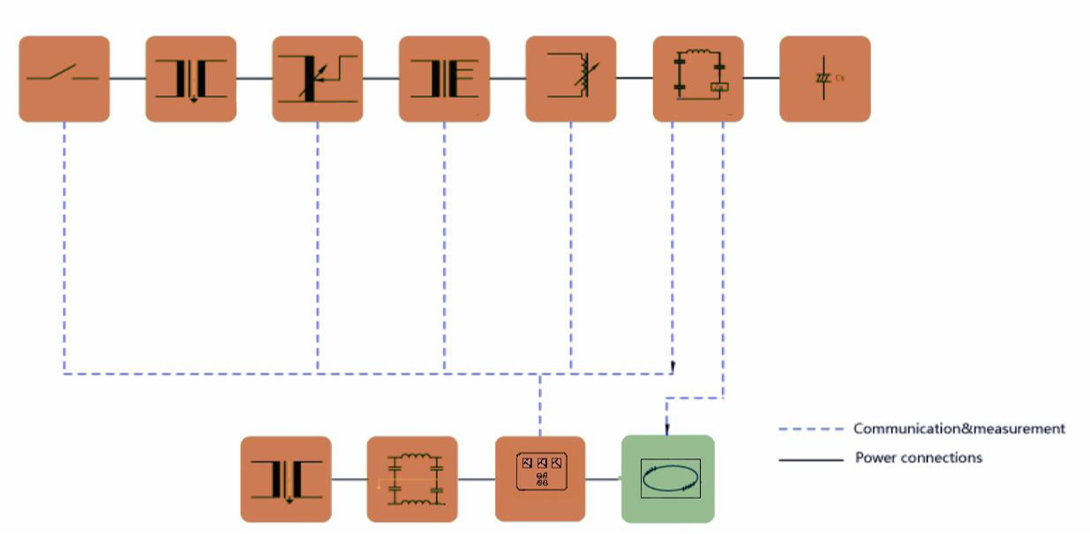

Drawing
Model
