AC TEST TRANSFORMER SYSTEM
Summary
AC TEST TRANSFORMER SYSTEM is designed for PD & withstanding
voltage test of power equipment, example for power transformer, GIS, Instrument transformer, Insulator, power cable and bushing etc. The whole system designing conforms to IEC standard, and has excellent quality with good heat radiation, highly reliable and easy to operate.
Features
Up to 800kV max output voltage
Non-pd designing, less than 2PC
Fast protection designing for overvoltage
Human-friendly interface and intelligent control
Auto record for test data and data analysis
Scope
Test transformer
Voltage regulator
Power filter
Overvoltage protection device
Auto control system

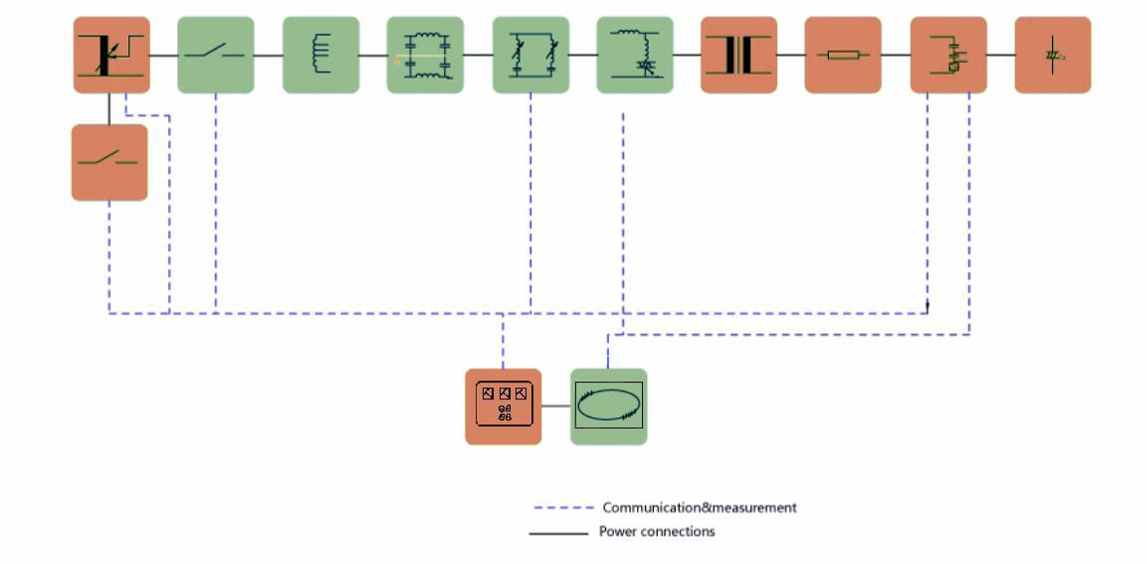

Drawing

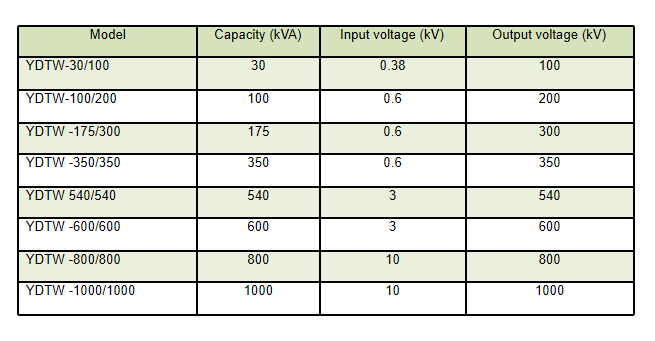

Model
